Screen Capture

ShotX supports multiple capture modes, all accessible from the tray menu, Main Window sidebar, hotkeys, or CLI.

Fullscreen

Captures the entire screen (or a specific monitor in multi-monitor setups).

shotx --capture-fullscreen

How it works:

  1. Grabs a screenshot via the display server (xdg-desktop-portal on Wayland, XCB on X11)
  2. Runs the after-capture pipeline: save → clipboard → upload → notify

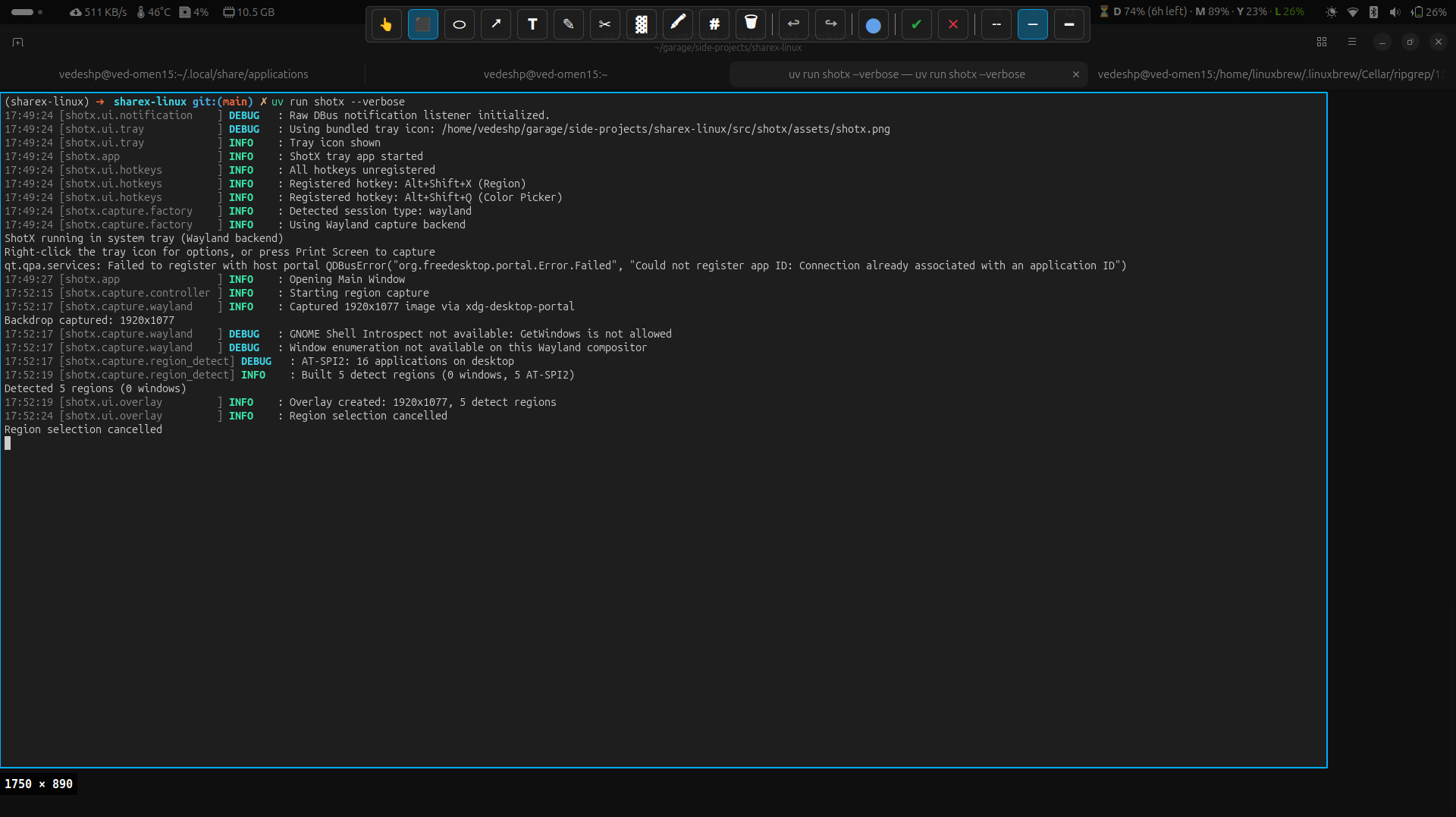

Region

Capture a user-selected rectangular area with an interactive overlay.

shotx --capture-region

How it works:

  1. Captures a fullscreen backdrop image
  2. Detects available regions (windows via compositor API, UI elements via AT-SPI2)
  3. Displays a full-screen overlay with:
    • Rubber-band drag selection
    • Hover highlighting on detected regions
    • Dimension labels while dragging
  4. On selection: either enters annotation mode or saves directly (configurable)

Window

Currently uses the same region overlay as region capture — click on a detected window to capture it.

shotx --capture-window

Capture Options

Screenshot Delay

Add a configurable delay (in seconds) before capture. Useful for capturing menus, tooltips, or timed states.

Set via Settings → Capture → Screenshot Delay.

Cursor Visibility

Toggle whether the mouse cursor appears in screenshots.

Set via Settings → Capture → Show Cursor.

Auto-Detect Regions

Enable/disable automatic detection of windows and UI elements for hover-to-select.

When enabled, ShotX uses:

  • Window enumeration: compositor-specific APIs (GNOME Introspect, wlroots)
  • AT-SPI2: Accessibility tree for sub-window UI element detection

Note

AT-SPI2 requires PyGObject. See Installation for setup.

After-Capture Pipeline

The after-capture pipeline is a configurable sequence of actions:

After-Capture Task What it does Default
Save to File Save screenshot to output directory ✅ On
Copy to Clipboard Send image bytes to system clipboard ✅ On
Upload Image Trigger the background upload engine ❌ Off
Open in Editor Launch internal drawing tool ❌ Off

[!NOTE] Disk Spooling Fallback The Upload and Editor tools fundamentally require a physical file path to read or transmit image bytes. If you have "Save to file" unchecked but still request an Upload or Edit action, ShotX will automatically save a silent, high-quality temporary file to /tmp/shotx/ so the background workers don't crash. Since Linux automatically clears the /tmp RAM-disk upon reboot or memory pressure, no manual cleanup is required!

Configure via Main Window sidebar → After Capture Tasks, or Settings → Workflow.
